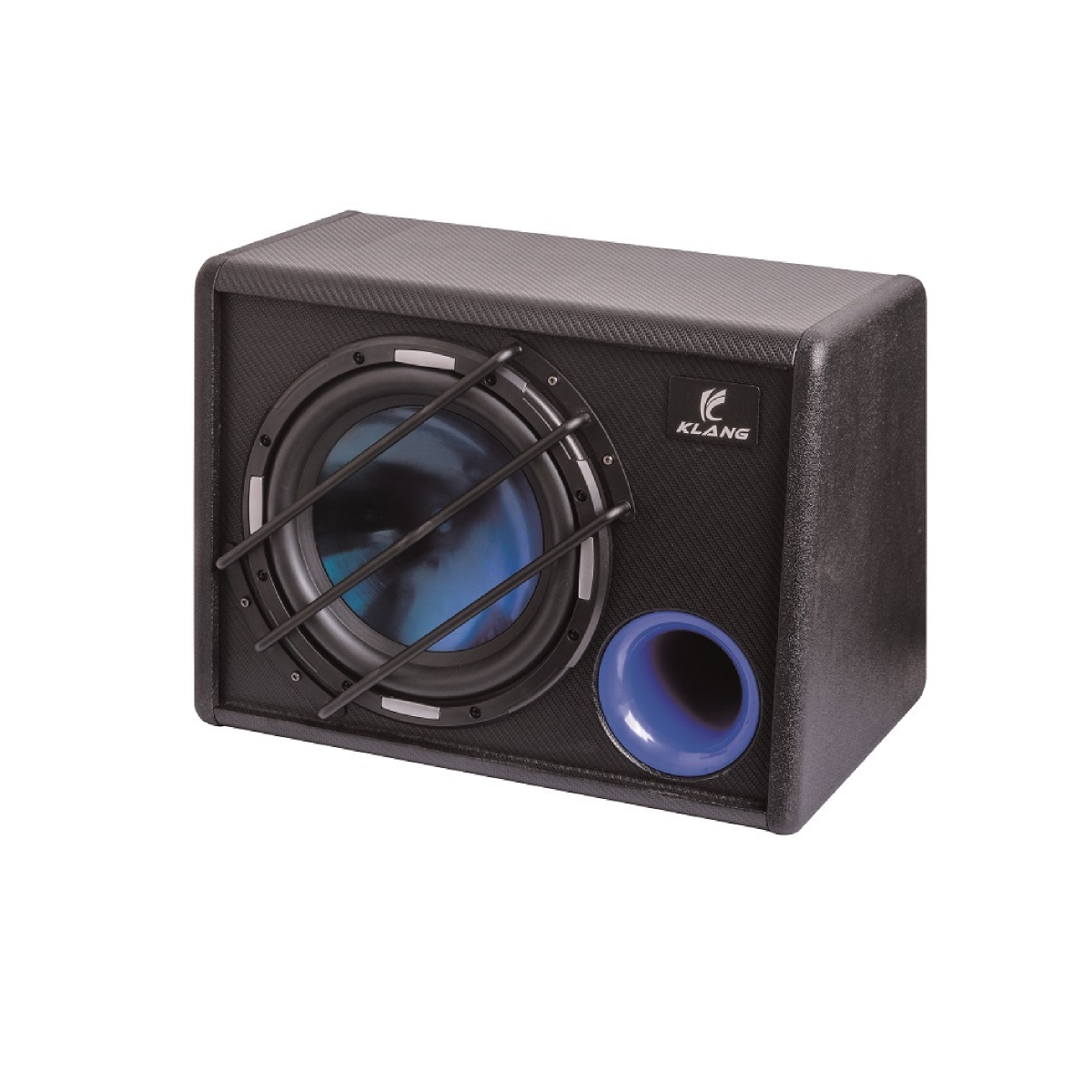

YL-B10 Ignite the sound field! 10 inch active subwoofer

1. Equipped with an efficient D-class amplifier chip, with a rated power of up to 200W and a peak power of up to 400W

Specially optimized heat dissipation structure for automotive environment, ensuring continuous high-power output without attenuation

Low distortion design that maintains a clean and solid bass texture even at maximum volume

2. The frequency response range is 20Hz-250Hz, truly reaching the extremely low frequency range perceivable by the human body

Special long stroke cone design, pushing more air and producing touchable low-frequency fluctuations

Whether it's the rhythm bombardment of electronic music or the details of the bass in classical music, they can be accurately reproduced

3. Bass enhancement knob (0-12dB adjustable)

Phase switching switch (0 °/180 °)

Frequency division point adjustment (50-150Hz)

4. Overheating protection: The temperature sensor monitors the amplifier chip in real time and automatically reduces the power when the temperature exceeds the safety threshold to avoid burning out

Overvoltage protection: adapts to vehicle voltage fluctuations (10-16V) and automatically shuts off protection in case of sudden voltage surges

Short circuit protection: Immediately cut off the circuit protection equipment and vehicle electrical system safety when the output port is short circuited

5. Standard 4 Ω impedance, compatible with over 90% of the original car host

Supports high-level input (connected to the original car horn cable) and low-level input (RCA interface)
