Invisible Seat Ultra-thin Subwoofer · Forged from Aviation Aluminum YL-8601
Car Subwoofer
Products Categories
Featured Products

Invisible Seat Ultra-thin Subwoofer · Forged from Aviation Aluminum YL-8601

Hide the bass, feel the power. Our ultra-thin aluminum subwoofer tucks under your seat, delivering massive sound without sacrificing space.


Car Fitment: Ford, Universal

RMS Power: 120W

Sensitivity: 91 - 100dB

Voltage: DC 12 V

Warranty: 1 Year


Max. SPL: 90 dB
Coil Number: Single
Frequency Range (Hz): 20 - 250 Hz
Place of Origin: Guangdong, China
Brand Name: OEM
Model Number: YL-8601
Product name: Car Subwoofer Under Seat
Application: Car Audio System
Size: 8 inch
Impedance: 4 Ohms
RMS: 120w
Sound level: Active Subwoofer
MOQ & delivery: please inquiry
OEM/DOM: customized since 2012
Certificate: ISO9001
Sensitivity: 91db

    Product Features

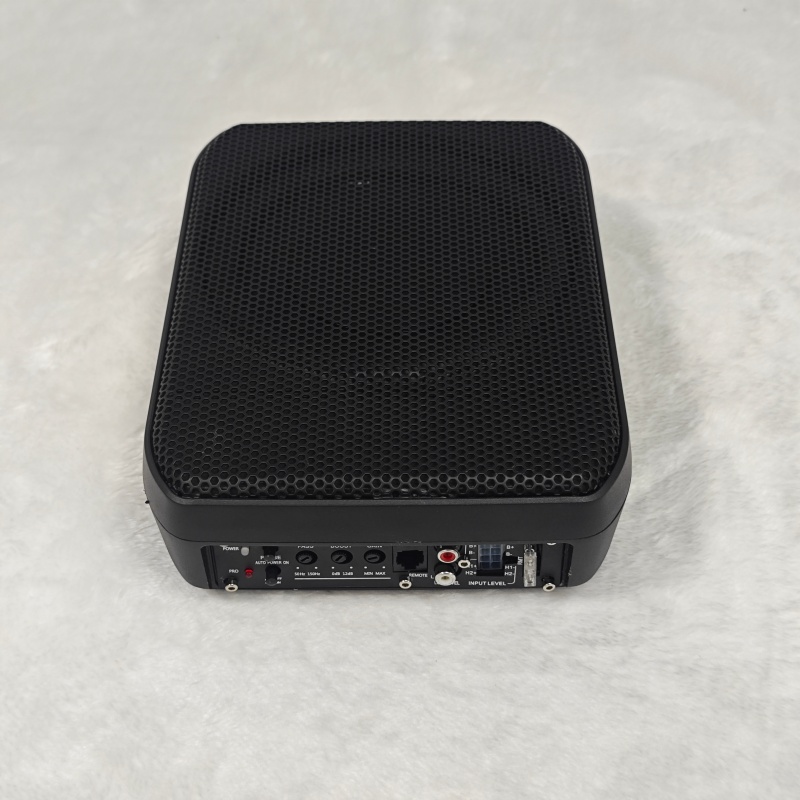

    YL-702 (1)

    Space Wasted by Your Subwoofer? Not Anymore.
    Maximize your cabin. Minimize the footprint. Our Invisible Seat Subwoofer is engineered from a single piece of aviation-grade aluminum to slide perfectly beneath your seat. The ultimate stealth upgrade for your sound system.

    Slim Profile. Brutal Performance.



    Advanced Driver & Chamber: A high-excursion driver, coupled with a precision-tuned acoustic enclosure, punches far above its size.

    Deep, Distortion-Free Bass: Experience tight, accurate lows that you feel—not muddy noise you hear. Say goodbye to rattle and hello to clarity.

    Lightning-Fast Transients: Every kick drum and bass note is rendered with razor-sharp speed and definition.

    Your Car, Your Studio.
    Crank up the energy of rock, feel the nuance of a vocal jazz trio, or immerse yourself in a cinematic score. This isn't about adding noise; it's about reclaiming your space and unlocking a premium, high-fidelity audio experience.Let limited space create infinite sound field. Embark on an immersive driving experience from under your seat.

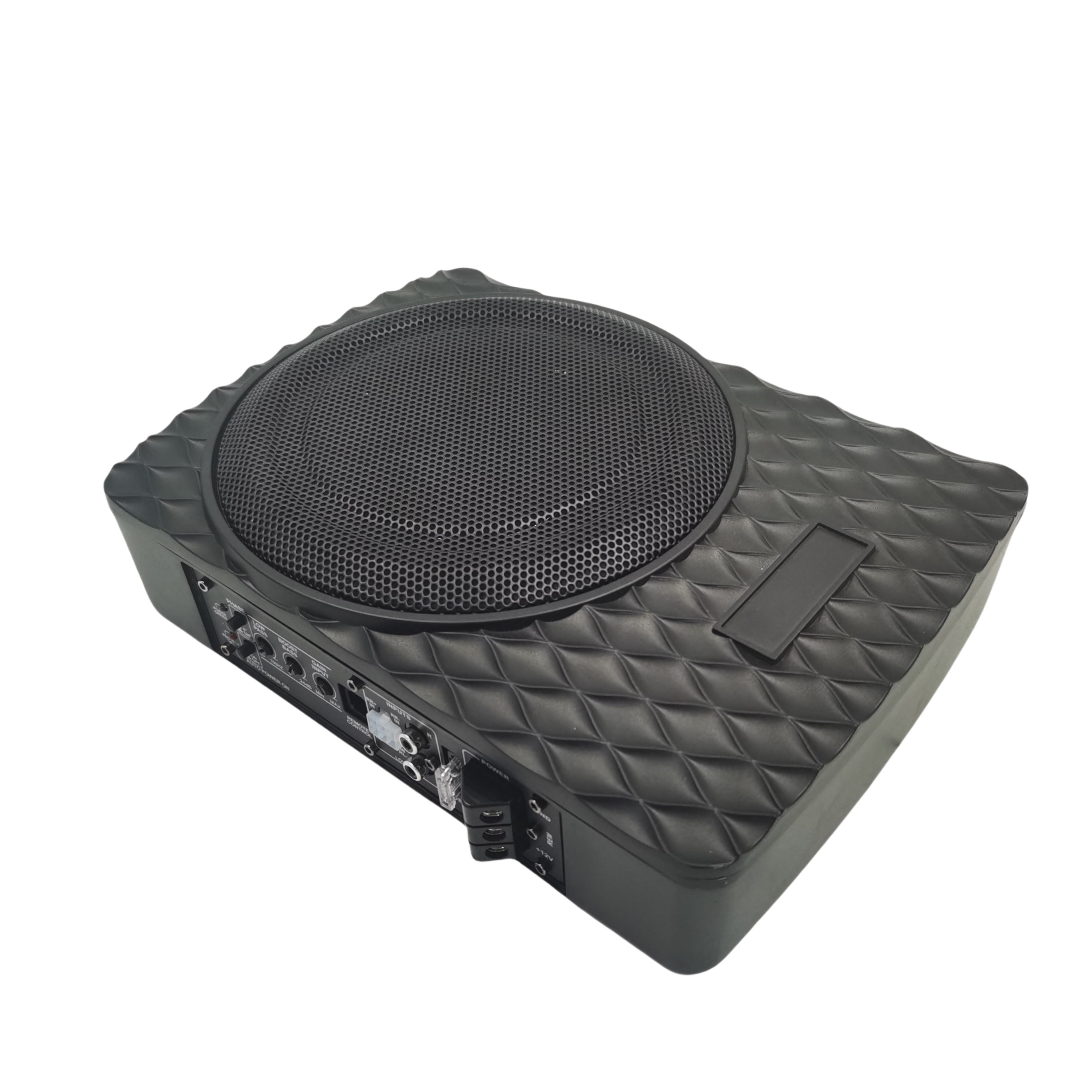

    YL-8601-4

    Product Parameter

    Net Weight of the Product 3.11KG
    Product + Accessories Weight 3.19KG
    Gross Weight of the Color Box 3.63KG
    Product Dimensions 23.5 (26 when including mounting or fixing feet) * 23 * 5cm
    Color Box Dimensions 39 * 27 * 10cm
    Model TD - 810S PRO
    Channels 10
    EQ 31 - band EQ
    Amplifier Type Class AB
    Peak Power 4x50W + 4x120W + 2x600W
    Rated Power 4X25W@4Ω + 4x60W@4Ω + 2x150W@4Ω (2x300W@2Ω, 600W in bridge mode)
    Decoding and Processing Chips American ADI1452 + TIPCM3168
    Impedance 2Ω - 4Ω
    Operating Voltage DC 10 - 15V
    Tuning Methods Windows Mixer / Android Mobile APP / Apple APP
    Input Methods 8 - channel high - level / 2 - channel low - level / OTG / Bluetooth 5.1 / Optical Fiber / Coaxial / Digital Broadcasting
    Output Methods 10 - channel high - level / 10 - channel low - level
    Frequency Response Range 20Hz - 20KHZ
    Signal - to - Noise Ratio >98dB
    Bluetooth Bluetooth 5.0
    Startup Methods ACC / High - level
    Product Dimensions 235mm(L) * 230mm(W) * 50mm(H)
