China Source Factory, V12 4/3/2 Channel Car Audio Power Amplifier

1. Basic Product Information

- Model: WDK-705

- Series: V12

- Peak Power: 3800 Watts

- Channel Mode: 4/3/2 switchable channel power amplifier

- Core Circuit: DC straight power supply with MOSFET final stage, designed for 12V vehicles

- Application: Ideal for car audio modification. It can drive front and rear door speakers, and supports bridged connection for subwoofers. Compatible with sedans, SUVs, vans and most 12V gasoline vehicles.

2. Appearance & Heat Dissipation Design

This amplifier adopts a thickened full-aluminum finned heat dissipation shell with multi-layer parallel heat dissipation channels. The large-area heat sink efficiently dissipates heat generated by MOSFET tubes, preventing overheat protection even during long-time high-volume playback.

The matte black metal casing is wear-resistant, scratch-proof and shock-resistant for in-car use. Its compact size allows flexible hidden installation under seats or in the trunk.

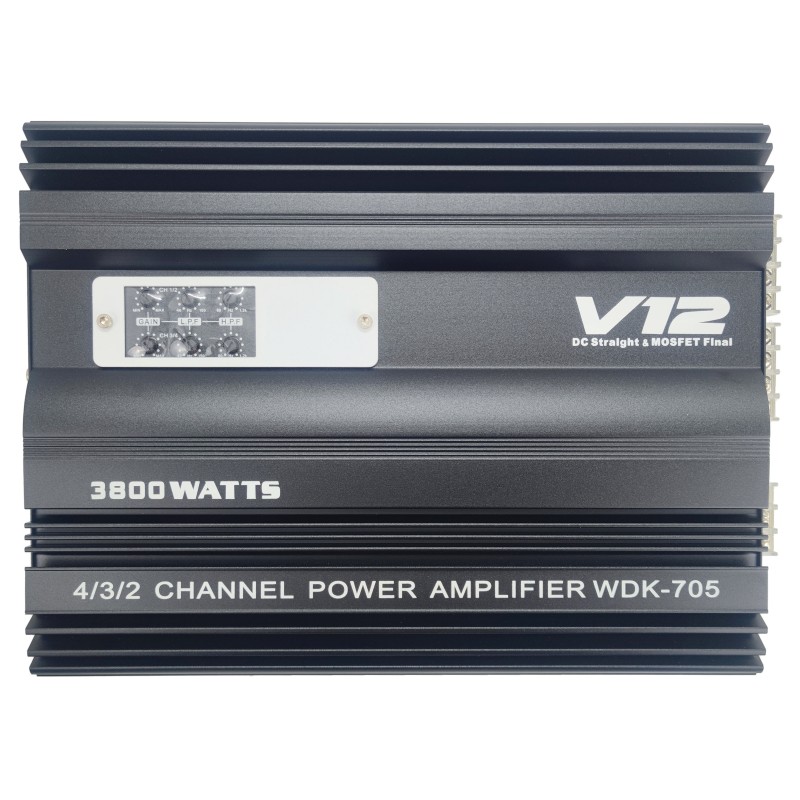

3. Front Tuning Control Panel

Three professional control knobs on the front panel enable precise sound field adjustment:

- GAIN: Adjust input signal sensitivity to match the head unit output and avoid sound distortion.

- LPF (Low Pass Filter): Adjust bass frequency. Perfect for bridged subwoofers to filter out mid and high frequency noise.

- HPF (High Pass Filter): Adjust mid and treble frequency. Matches door speakers and protects units from low-frequency damage.

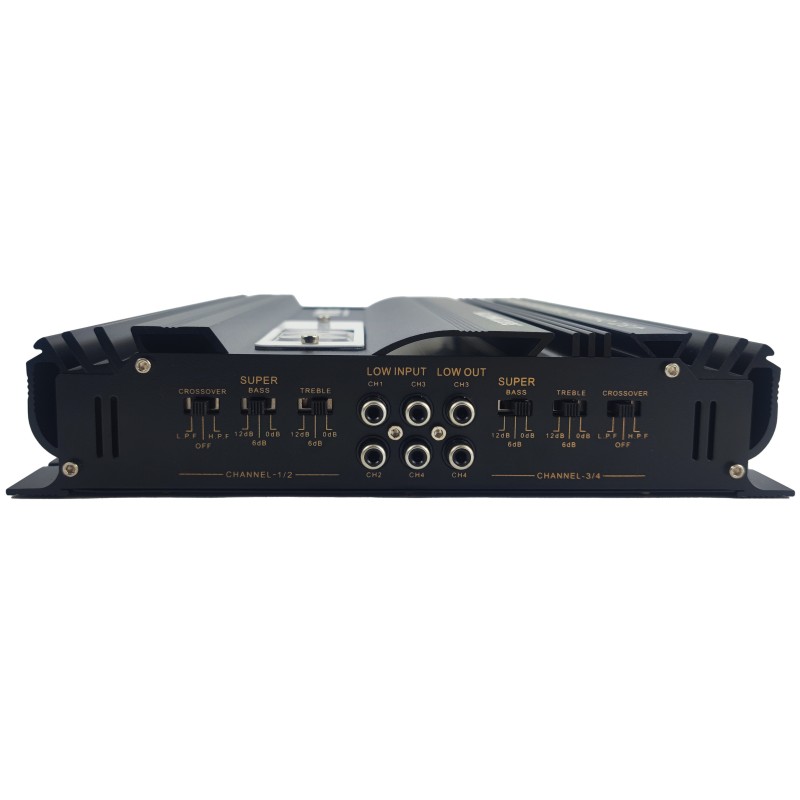

4. RCA Input & Crossover System

 4.1 Input & Output Ports

- LOW INPUT: 4-channel RCA low-level audio input (CH1/CH2, CH3/CH4) for connection with car head units.

- LOW OUT: Low-frequency pass-through output port, which can connect to an extra amplifier to expand the bass system.

 4.2 Independent Sound Field Tuning

CH1-2 and CH3-4 are equipped with separate tuning switches for independent front and rear sound field adjustment, delivering excellent sound separation:

- CROSSOVER Mode

  - OFF: Full frequency pass-through

  - HPF: Only outputs mid and treble for door speakers

  - LPF: Only outputs low frequency for subwoofers

- SUPER BASS: 0dB~12dB bass boost to enhance heavy bass effect

- TREBLE: 0dB~6dB treble boost for clearer vocal and instrumental details

- It features 6dB crossover slope for smooth frequency transition.

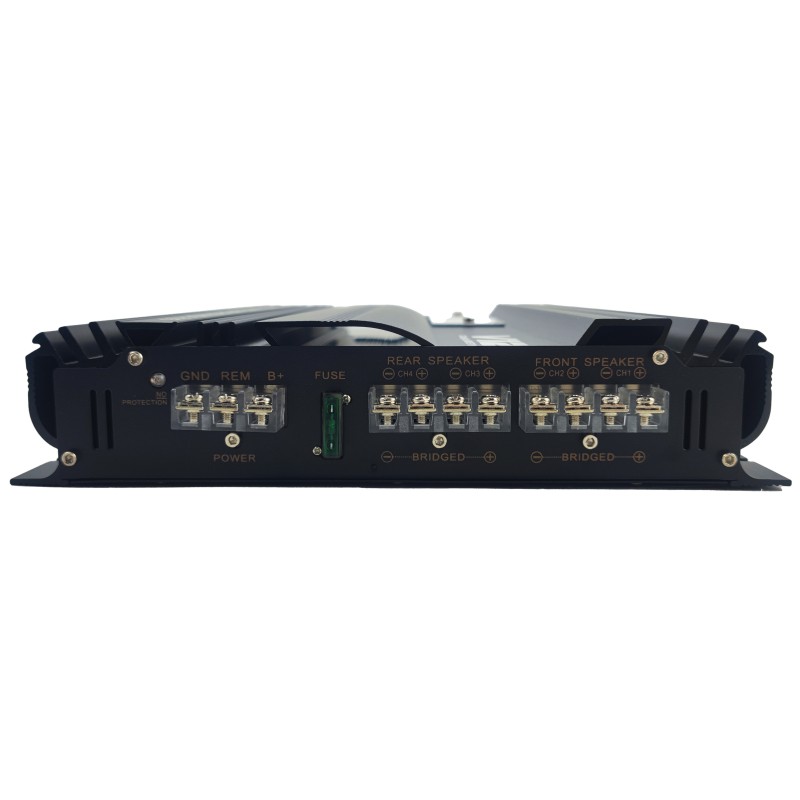

5. Power & Speaker Terminals

 5.1 Power Terminals

- B+: Connect to the positive pole of car battery. Thick copper wire with fuse is recommended.

- GND: Ground terminal, connect to bare metal of car body for stable current.

- REM: Remote control wire, synchronously turns the amplifier on/off with the car head unit.

- FUSE: Built-in fuse provides over-current protection, automatically cuts off power under short circuit or overload.

- PROTECTION Indicator: Lights up for self-check, short circuit, overheat or reverse power connection.

 5.2 Speaker Output & Working Modes

- FRONT SPEAKER (CH1/CH2): Front left & right speaker output, supports bridged mode.

- REAR SPEAKER (CH3/CH4): Rear left & right speaker output, supports bridged mode.

 Three Switchable Modes

1. 4-Channel Mode: 4 independent outputs to drive four door speakers for balanced sound performance.
2. 3-Channel Mode: 2 channels for front & rear speakers, the other 2 channels bridged to drive passive subwoofers.
3. 2-Channel Bridged Mode: Combine four channels into two high-power outputs, specially for large-size subwoofers.

6. Core Advantages
7. Multi-mode Design: One amplifier meets the demands of four speakers plus subwoofer installation, saving your modification cost.
8. Independent Tuning: Separate crossover, bass and treble adjustment for front and rear channels to create customized HiFi sound field.
9. Excellent MOSFET Circuit: Fast dynamic response, no distortion even playing high dynamic music. Suitable for vocal, rock, pop and DJ music.
10. Comprehensive Protection: Built-in over-current, short circuit, overheat and reverse connection protection to ensure vehicle circuit safety.
11. Efficient Heat Dissipation: Aluminum alloy shell ensures stable operation at high volume for a long time.
12. Easy Installation: Standard DC 12V power supply, simple wiring, compatible with most cars.

7. Recommended Installation Solutions
8. Entry-level 4-door Upgrade: Use 4-channel full frequency output to replace original speakers and upgrade basic sound quality.
9. Mid-range Full Car Audio: CH1-2 for front component speakers, CH3-4 bridged for subwoofer, combining clear vocal and powerful bass.
10. Heavy Bass Setup: Bridge all four channels to drive 10/12 inch subwoofers, ideal for DJ music and bass competition.
