10-12-Inch Car Active Subwoofer - Deep, High-Power Bass Speaker V10-V12 NOTE
Car Subwoofer
Products Categories
Featured Products

10-12-Inch Car Active Subwoofer - Deep, High-Power Bass Speaker V10-V12 NOTE

AS-D102Type
KL-V10 note
Brand
OEM
Material
Wooden
Impendance
4 ohm
Frequeny response
20hz-800hz
RMS
150W
Size
10 inch
Magnetic
double
Place of Origin
Guangdong,China
Function
Enhanced bass of the original vehicle
Feature

Suitable for CD players,the navigator pushes directly voice clear and stereo surround
Usage
car audio

    Product Features

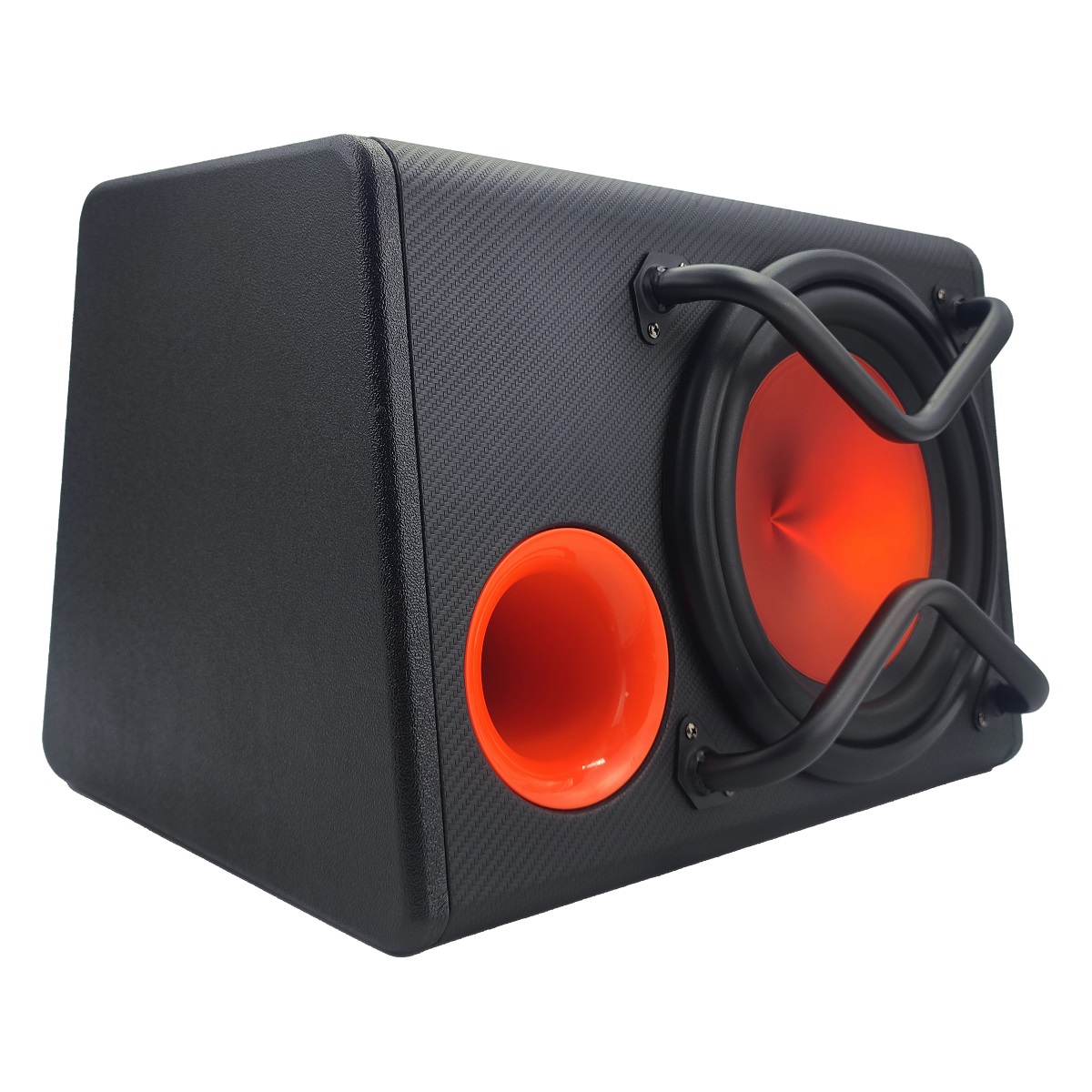

    KL-V10 NOTE-3

    1. Powerful Built-in Amplifier
    With a rated power of up to 200W, it delivers abundant power to the bass driver, outputting clean, strong, and tight bass. It maintains stable performance even at high volumes.


    2. Extreme Low-Frequency Extension
    Boasting a frequency response range of 20Hz-250Hz, it can accurately reproduce ultra-low-frequency details in music, allowing you to not only hear but also physically feel the shocking bass.

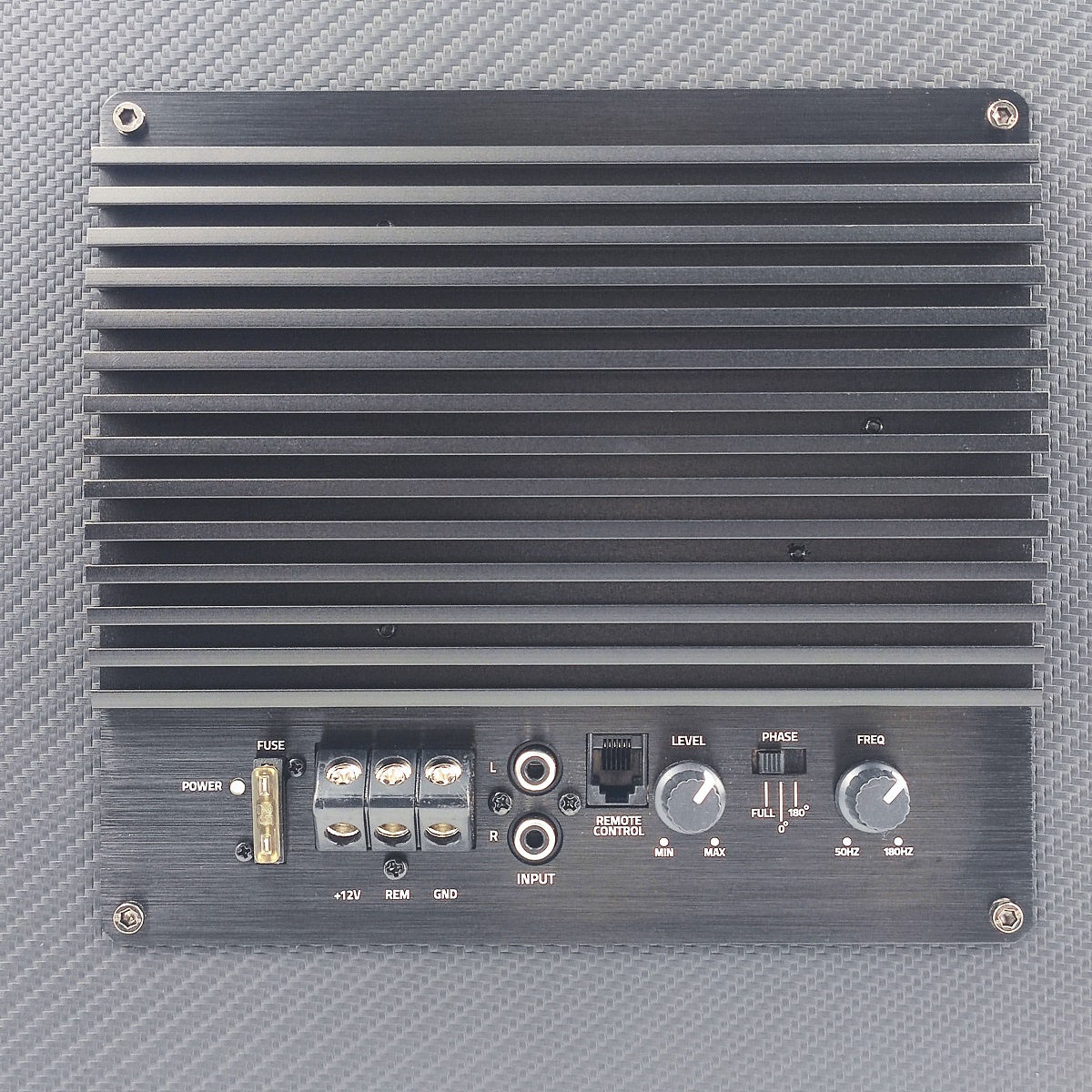

    3. Professional-Grade Calibration Functions
    - Adjustable Bass Boost (0-12dB): Flexibly enhances bass effect according to your personal preferences and music genres, meeting diverse needs from delicate vocals to explosive electronic music.
    - Phase Switch (0°-180°): Ensures the sound of the subwoofer is synchronized with the original speakers in the car, eliminating sound cancellation and achieving consistent soundstage performance.









    4. Comprehensive Safety Protection
    Equipped with three-fold protection circuits against overheating, overvoltage, and short circuit, it intelligently monitors the working status. This effectively safeguards the device and user safety, extends the product's service life, and lets you enjoy powerful music without worries.


    5. High Compatibility
    Featuring a standard 4Ω impedance design, it is perfectly compatible with most car head units and amplifier outputs.

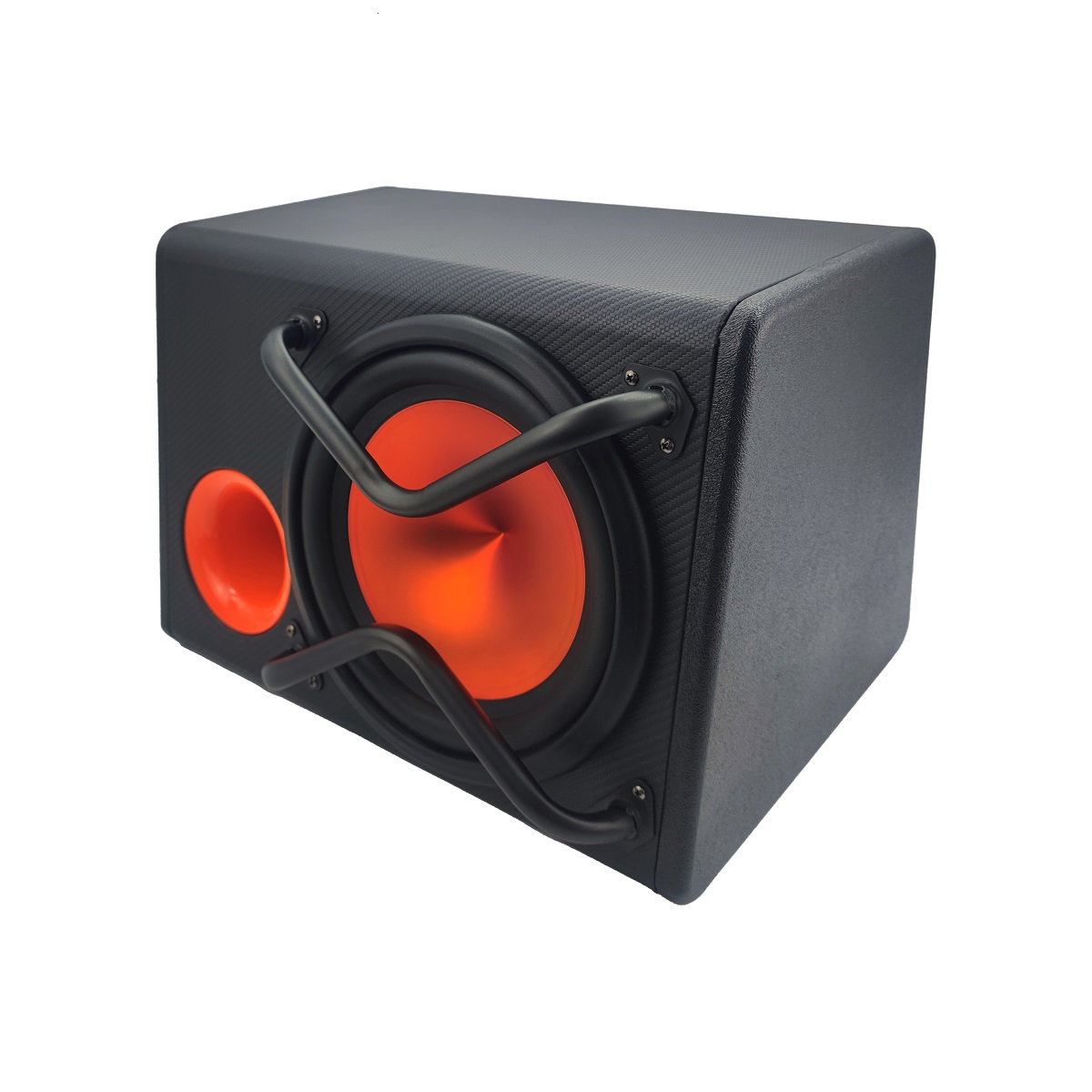

    KL-V10 NOTE-6

    Product Parameter

    Net Weight of the Product 3.11KG
    Product + Accessories Weight 3.19KG
    Gross Weight of the Color Box 3.63KG
    Product Dimensions 23.5 (26 when including mounting or fixing feet) * 23 * 5cm
    Color Box Dimensions 39 * 27 * 10cm
    Model TD - 810S PRO
    Channels 10
    EQ 31 - band EQ
    Amplifier Type Class AB
    Peak Power 4x50W + 4x120W + 2x600W
    Rated Power 4X25W@4Ω + 4x60W@4Ω + 2x150W@4Ω (2x300W@2Ω, 600W in bridge mode)
    Decoding and Processing Chips American ADI1452 + TIPCM3168
    Impedance 2Ω - 4Ω
    Operating Voltage DC 10 - 15V
    Tuning Methods Windows Mixer / Android Mobile APP / Apple APP
    Input Methods 8 - channel high - level / 2 - channel low - level / OTG / Bluetooth 5.1 / Optical Fiber / Coaxial / Digital Broadcasting
    Output Methods 10 - channel high - level / 10 - channel low - level
    Frequency Response Range 20Hz - 20KHZ
    Signal - to - Noise Ratio >98dB
    Bluetooth Bluetooth 5.0
    Startup Methods ACC / High - level
    Product Dimensions 235mm(L) * 230mm(W) * 50mm(H)
